ArcLab 5200 SERIES ELECTRONICS SHUTTLE & 12V ACCESORIES

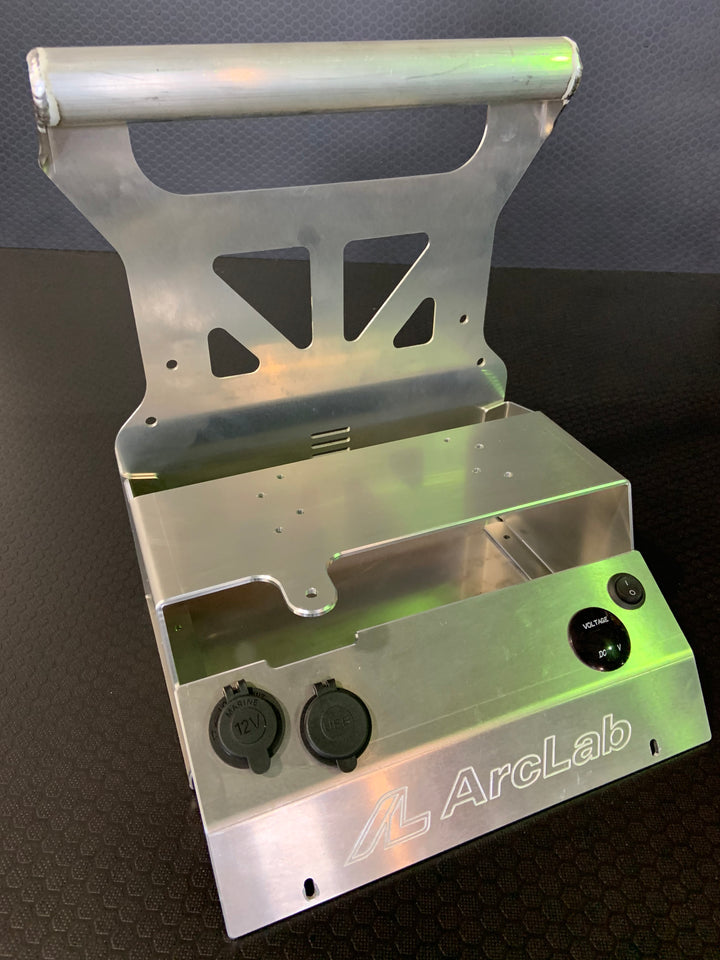

The Universal 5200 series electronics shuttle is designed to be compact, light weight and extremely tough. Our 5200 series shuttle works with all Live Sonar systems on the market as well as every flasher unit available today. Its the ultimate vessel to house your electronics investment while in use or in travel.

-Weighing only 4.81 lb when assembled and built from marine grade 1/8" T5052 aluminum for unmatched durability in cold climates

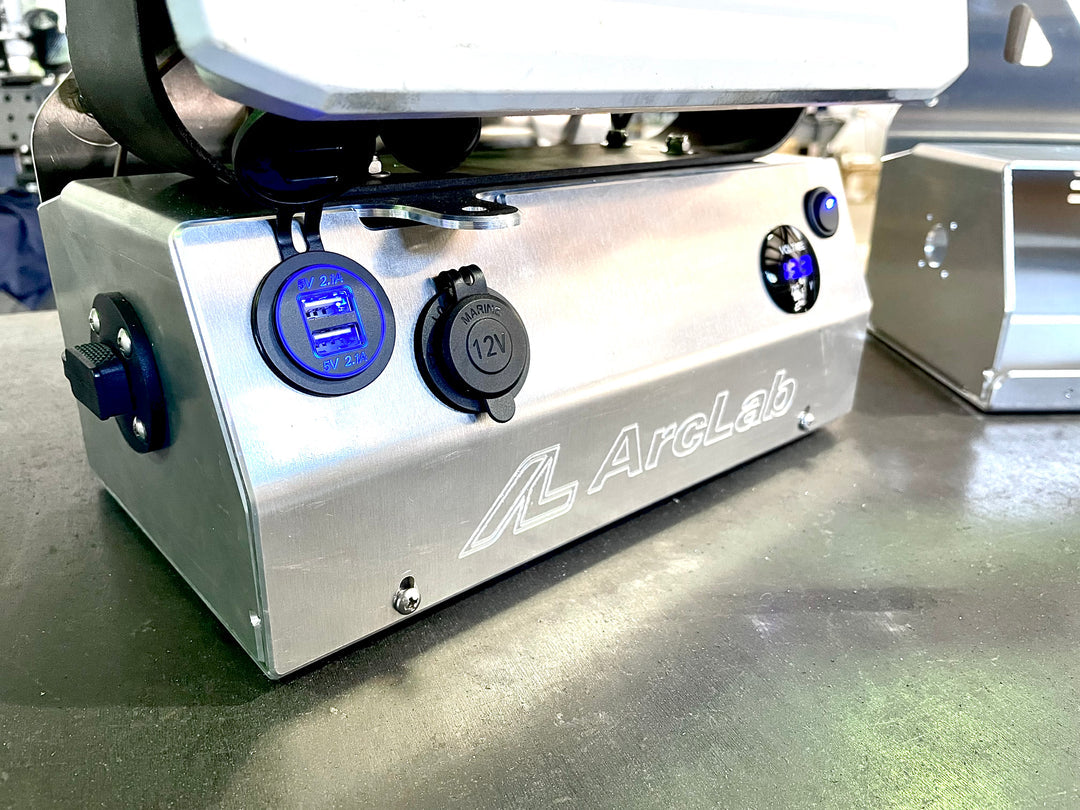

- When outfitted with the 12v accessory face plate the 5200 series shuttle serves as a power center for other 12v appliances. Dual USB charge ports, a 12v socket , digital voltage meter and a master power switch give you more functionality to your shuttle.

- Fits many options for battery size

-Comes with SAE 12v charge port for a safe and convenient charge connection. (Works with Amped Lithium charger but can be wired to any charger)

-Inside dimension with basic face plate: L 5.25" W 10.875" x  H 4.375"

-Inside dimension with 12v face plate: L 5.25" W 10.875" x H 4.375"

- Outer dimension L 11.25" W 6.625" H 13.375"

-Fits all AMPED Lithium batteries (EXCEPT 30Ah TALL)

- Even fits the AMPED 52Ah battery!

: Comes complete with 12V charge port, battery tie down strap, vhb double sided tape and all required shuttle assembly hardware.

Hardware to mount your electronics is NOT provided

Does not include CABLE CLEAT

Does not include wiring or harness

DIY wiring required

CLICK HERE for printable wiring diagram PDF and assembly instructions
